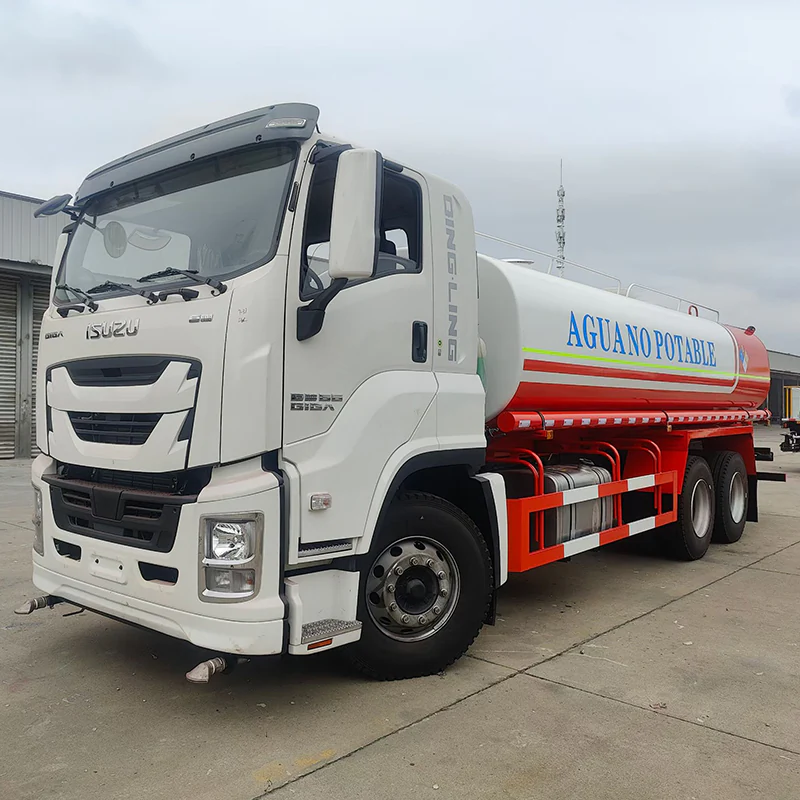

Isuzu 22m³ Water Sprinkler Truck - image 1#!trpst#/trp-gettext#!trpen

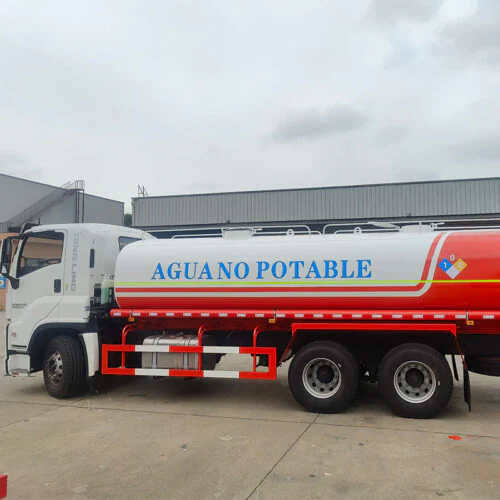

Isuzu 22m³ Water Sprinkler Truck - image 2#!trpst#/trp-gettext#!trpen

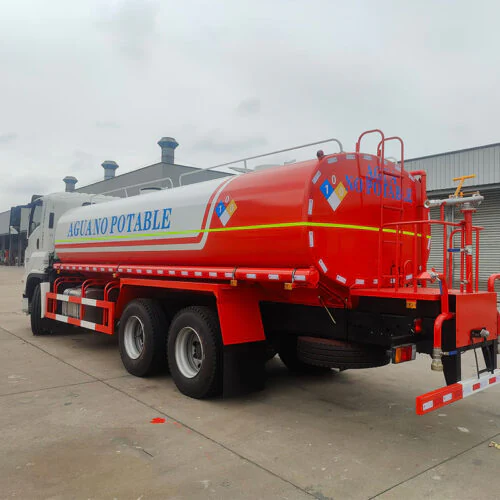

Isuzu 22m³ Water Sprinkler Truck - image 3#!trpst#/trp-gettext#!trpen

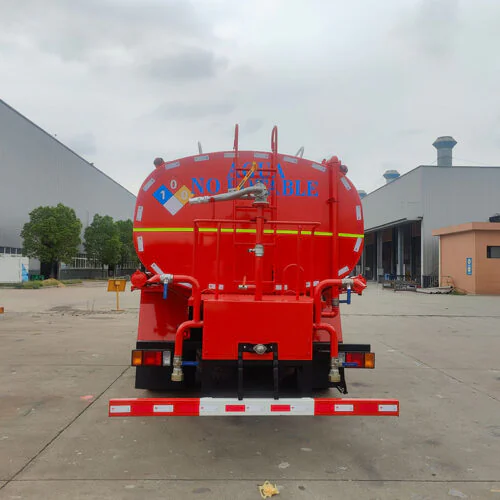

Isuzu 22m³ Water Sprinkler Truck - image 4#!trpst#/trp-gettext#!trpen

Водоразбрасыватель Isuzu объемом 22 м³

Equipped with a large-capacity water tank, multiple spray nozzles, and a high-pressure water pump, this water truck is capable of road washing, dust suppression, and irrigation of greenery. It also serves emergency firefighting functions and is widely used in municipal sanitation and dust control at construction sites.

Запросить расценки

Укажите необходимое количество и добавьте товар в список запросов на расчет стоимости.

Количество:

Описание

Chassis Specifications: Isuzu GIGA, 6×4, 380 hp, wheelbase 4600+1350mm, manual transmission, 11.00R20 steel-belted radial tires;
7-ton front axle, 13-ton dual rear axles, air-actuated parking brake, factory A/C, electric windows and door locks, central locking, factory ABS, 400L aluminum alloy fuel tank.

Технические характеристики надстройки:
1. Tank capacity: 22,000 liters; constructed from 5mm carbon steel plate; equipped with a Model 60/90 sprinkler pump.
2. Standard features: front flush, rear spray, side spray, and a rear working platform with a landscaping water cannon.
3. Front flush angle adjustable according to customer requirements.
4. Aluminum rear spray nozzles (resistant to bursting/rupture).
5. New-style bearing-type water cannon (enhanced durability).
6. Large-bore (50mm) stainless steel ball valves used throughout the vehicle.
7. Automated welding for the tank body, panel joints, and head circumferential seams; ensures porosity-free, aesthetically pleasing welds.
8. Powered side marker lights and musical horn.
9. Piping system features a new explosion-proof design with industry-leading pressure resistance; capable of withstanding operating speeds of 1500–1800 rpm without leakage for over 3 minutes.
10. All small components, piping, and the tank bottom are coated with anti-rust paint prior to assembly, ensuring superior corrosion resistance.

Преимущества продукта

Преимущества продукта
1. Tank capacity options range from 3 to 35 cubic meters; compatible with mainstream chassis brands such as Dongfeng, Sinotruk, and Isuzu; customization available for export.
2. Tank features integrated welded construction with internal surge baffles and anti-corrosion/anti-rust treatment; minimizes leakage risk and ensures greater driving stability and safety. 3. Equipped with a high-power specialized water pump as standard, featuring front flushing, rear sprinkling, side spraying, and a high-pressure water cannon; offers long spray range and comprehensive functionality, with an optional one-touch pneumatic control system in the cab.
4. Optional mist cannon unit available for dust suppression and chemical spraying, meeting diverse operational needs for sanitation, construction sites, and landscaping.
5. Customizable for global markets:
Available in various tank capacities and configurations (left-hand or right-hand drive); specifications can be adjusted to comply with local regulations, making the vehicle suitable for regions such as Africa, Southeast Asia, and South America.
6. Uses widely available, interchangeable parts, ensuring easy maintenance and replacement in overseas markets and reducing long-term upkeep costs.
7. Factory-tested as a complete unit; comes with full documentation and supports export certifications (such as CE), ensuring reliable after-sales support.
