Isuzu 12-ton truck-mounted crane

A truck-mounted crane is a specialized truck equipped with an integrated hydraulic crane capable of lifting, loading, unloading, and transporting cargo; it offers high mobility and flexibility, with customizable tonnage options.

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Description

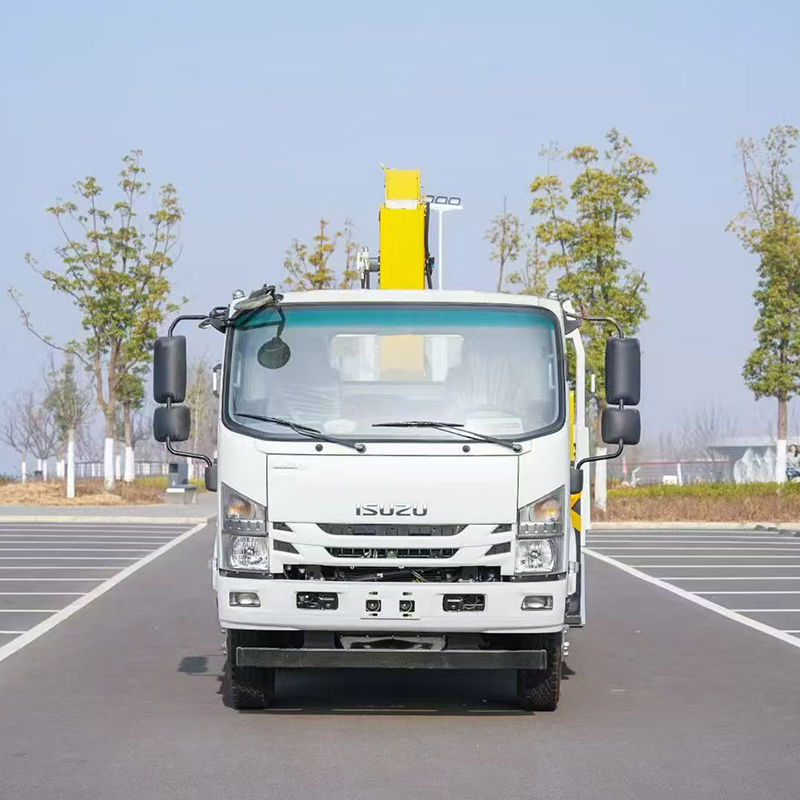

Chassis Configuration: Isuzu 700P single-row cab; Engine: Isuzu 4HK1 (190 hp diesel);
Transmission: 6-speed manual; Drive Type: 4×2 (single rear axle); Tires: 8.25R16 steel-belted radial tires;
Single-row cab; features include factory A/C, power windows, ABS, and power steering; GVW: 11-ton class;
200L aluminum alloy fuel tank.

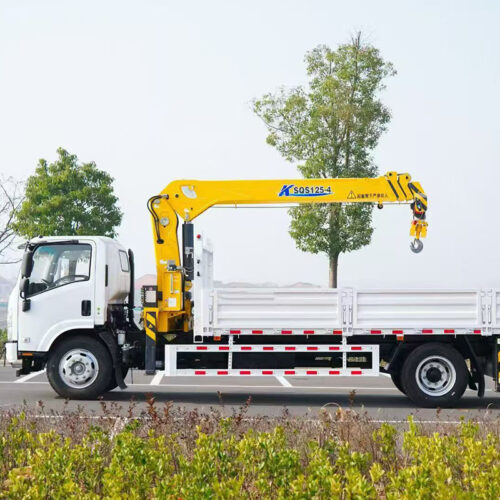

Superstructure Configuration: SQS125-4 (5-ton, 4-section straight-arm truck-mounted crane);
Working radius: 18.7m; Lifting height: 21m; Top-seat controls; Quad-pump system; Single-cylinder extension for the second boom section;
Front composite outriggers; Factory-standard single-chamber hydraulic rear outriggers; Factory throttle control; Anti-two-block alarm; 360-degree continuous rotation; Cargo bed dimensions: 6200×2450×550mm;
Side panels: 3.0mm steel plate; Floor: 5mm checkered steel plate; Reinforced gantry frame; Supports foreign-language decals; Manufactured to export standards.



Product Advantages

Product Advantages
1. Wide range of crane brands and tonnage options; straight-arm and knuckle-boom types available to suit various lifting scenarios.
2. Thickened and reinforced sub-frame and chassis mounting base; robust structural integrity resistant to deformation.
3. Widened hydraulic outriggers with overload protection ensure stable and safe operation.
4. High-strength cargo bed (customizable); integrates lifting and transport capabilities for multi-purpose use.
5. Optional features available, such as wireless remote control and aerial work baskets, to meet diverse operational needs.
6. Universal parts for easy maintenance
Uses standard market parts that are easily sourced and replaced locally overseas, reducing long-term maintenance costs.
7. Complete export documentation
Full-function factory testing; comprehensive documentation provided (including English operation manuals and inspection reports) to facilitate customs clearance.
