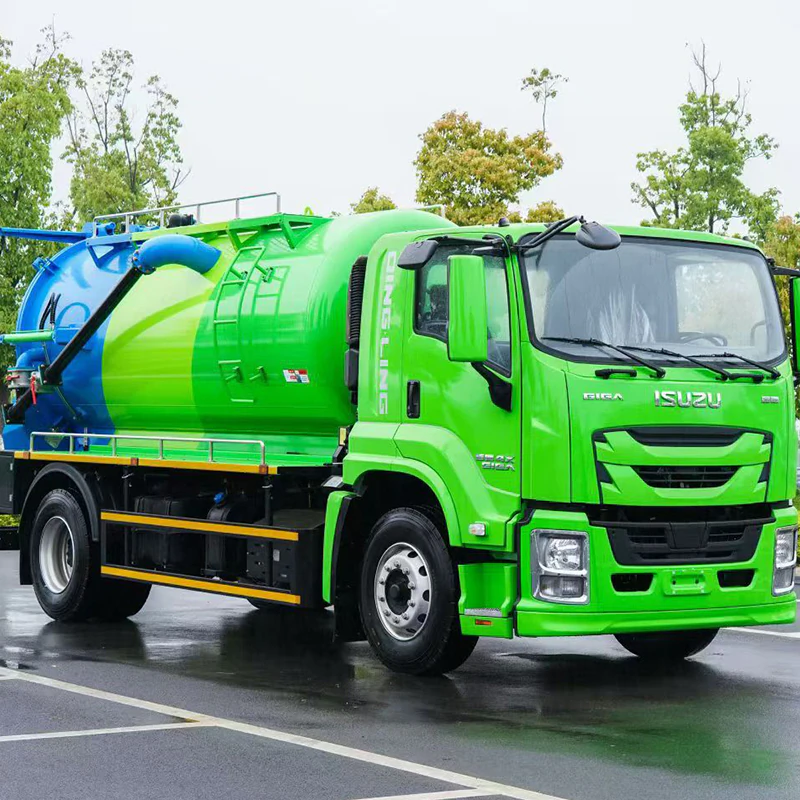

Isuzu 10m³ Sewer Cleaning and Suction Truck

Name: Isuzu 10m³ Sewer Cleaning and Suction Truck
Brand: شاحنات ومقطورات مخصصة | شركة صينية متخصصة في تصنيع الشاحنات

This high-pressure cleaning and suction truck integrates high-pressure cleaning and sludge suction capabilities, featuring a vacuum suction pump and a high-pressure water system. It is designed to extract sludge and sewage and clear pipelines using high-pressure water; the tank allows for separate discharge of waste, making the vehicle suitable for cleaning municipal pipe networks, septic tanks, and sewers.

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

الكمية:

Description

Chassis Specifications:
1. Cab: New Isuzu Giga 4X cab; 4500mm wheelbase; equipped with A/C (heating & cooling), power steering, central locking with remote key, electric windows, multi-function steering wheel, and multi-function LCD instrument cluster.
2. Powertrain: Isuzu 4HK1TC60 engine (205 hp) paired with an Isuzu MLD 6-speed transmission.
3. Braking System: Equipped with ABS and air-actuated parking brakes (spring brakes) for safe and reliable braking.
4. Axles: 6.3-ton front axle; 13-ton rear axle.
5. Tires: Standard 295/80R22.5 tires.

Superstructure Specifications:
1. Tank Body: 10m³ sewage suction tank made of high-quality WISCO steel plate (6mm wall thickness); features internal anti-surge baffles and high-strength, arc-shaped front and rear heads (formed via one-piece die-casting); supports rear door opening and dual-cylinder hydraulic tipping for direct dumping of waste; includes a hand-washing unit and an enlarged sewage sight tube.
2. Vacuum System: Equipped with dual 10-ton Weiye vacuum pumps; vacuum lines feature stainless steel filter screens to prevent debris from entering the pump; a Φ100 vibration-resistant pressure gauge is installed at the four-way suction valve to withstand vibration and buffer pressure pulsations.
3. Piping & Connections: Configured with a Φ100 suction port, Φ150 discharge port, and Φ100 clean water valve; includes one 8-meter suction hose.
4. Hydraulic System: Features hydraulic lifting for the tank and hydraulic opening/closing for the rear door, making discharge operations convenient and effortless.

Product Advantages:

Product Advantages:
1. Manufacturing Quality: Direct from the specialized vehicle manufacturer; tank body made of 6mm thickened WISCO steel; heads formed via one-piece die-casting; includes internal anti-surge baffles and reliable welding; supports customization of volume and logo printing; comes with a one-year warranty and a full set of export documentation. 2. Suction Performance: Equipped with dual 10-ton Weiye vacuum pumps delivering powerful suction; features a stainless steel filter screen and vibration-resistant pressure gauge to protect the pump unit and ensure stable operation.
3. Wide Range of Applications: Suitable for municipal sanitation tasks such as septic tank cleaning, sewer maintenance, and the transport of sludge and sewage.
4. Customizable for Global Markets: Available in various tank capacities with left- or right-hand drive options; configurations can be adjusted to meet local regulations, making the vehicle suitable for regions such as Africa, Southeast Asia, and South America.
5. Standardized Parts & Easy Maintenance: Uses widely available, off-the-shelf components that are easy to source and replace locally overseas, thereby reducing long-term maintenance costs.
6. Quality Assured: Undergoes comprehensive factory testing and comes with complete documentation; supports export certifications (such as CE) and offers reliable after-sales service.
