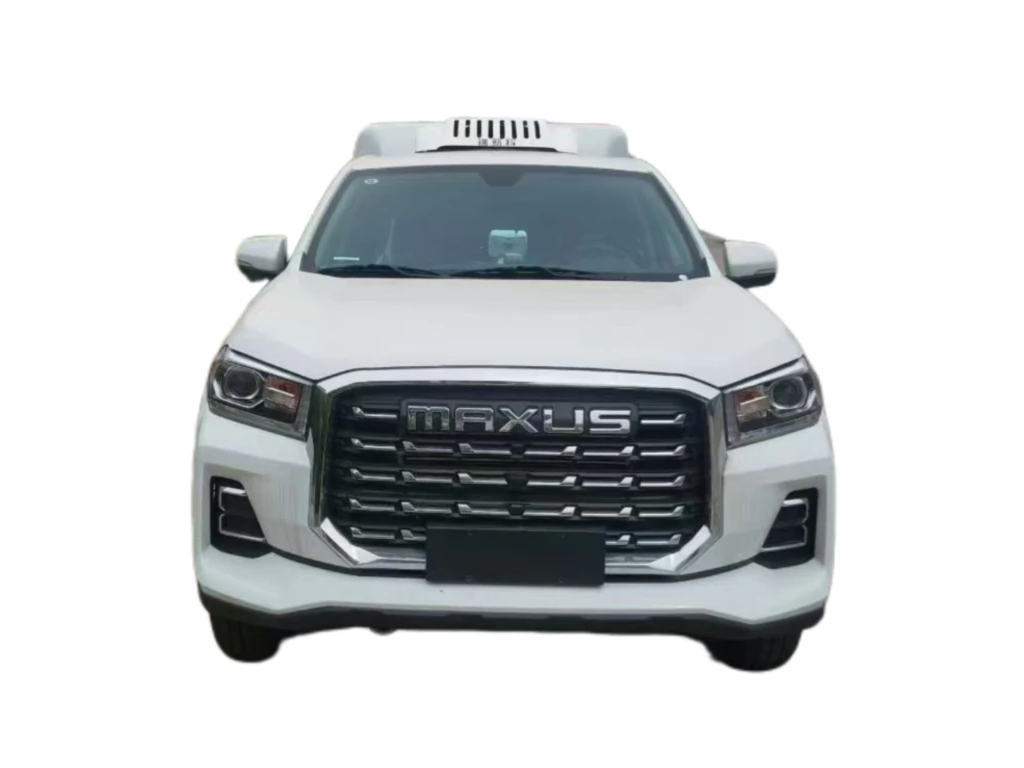

Maxus Pickup Vaccine Cold-Chain Vehicle

Chassis Specifications:
4×4 drivetrain, 3470mm wheelbase; 8-speed transmission (automatic option available); SAIC diesel engine (2.0L displacement, 163 hp).
Features: A/C, electric windows, central locking, remote key, ABS.
Vehicle Dimensions: 5650 × 1900 × 2030 (mm)
Cargo Box Dimensions: 1710 × 1360 × 1030 (mm)
Gross Vehicle Weight (GVW): 3050 kg
Rated Payload: 425 kg
Curb Weight: 2300 kg
Tire Specifications: 195/75R16LT 10PR

Body Specifications:
(1) Box construction: High-quality fiberglass exterior (non-light-absorbing, good thermal insulation, high hardness, oxidation-resistant) and stainless steel interior walls (options: 201 or food-grade 304).
Core insulation: 5mm thick XPS (extruded polystyrene) board. Assembly uses high-strength adhesive and positive-pressure hot-press molding (utilizing a fully automated gluing and pressing machine for uniform adhesive application, resistance to bulging, and high production efficiency).
(2) Interior flooring: Stainless steel with aluminum alloy ventilation channels; stainless steel air-flow channels installed on all interior walls. Rear door assembly: Stainless steel frame, locks, hinges, and hardware. Lighting: Energy-efficient LED interior lights and UV disinfection lamps, controlled by independent switches. Other standard features included. The entire box offers excellent thermal insulation, uniform temperature distribution, and high durability/wear resistance.
(3) Add-on components: Roof-mounted refrigeration unit—domestic Kelly KL-180D (with heating) or imported Thermo King/Carrier unit (0°C to -15°C range).
③ Optional items: Ventilation channels on five sides; temperature and humidity data logger (Shuoxing or Loget brands, GSP compliant); relevant inspection reports available upon request. Note: In compliance with national regulations for the transport of pharmaceuticals, vaccines, and blood products, these vaccine cold-chain vehicles are equipped with temperature and humidity data loggers. They feature GPS and real-time printers for continuous data recording and support network connectivity with multiple computers, allowing office-based staff to monitor vehicle routes and internal cargo temperatures in real time.
