полуприцеп

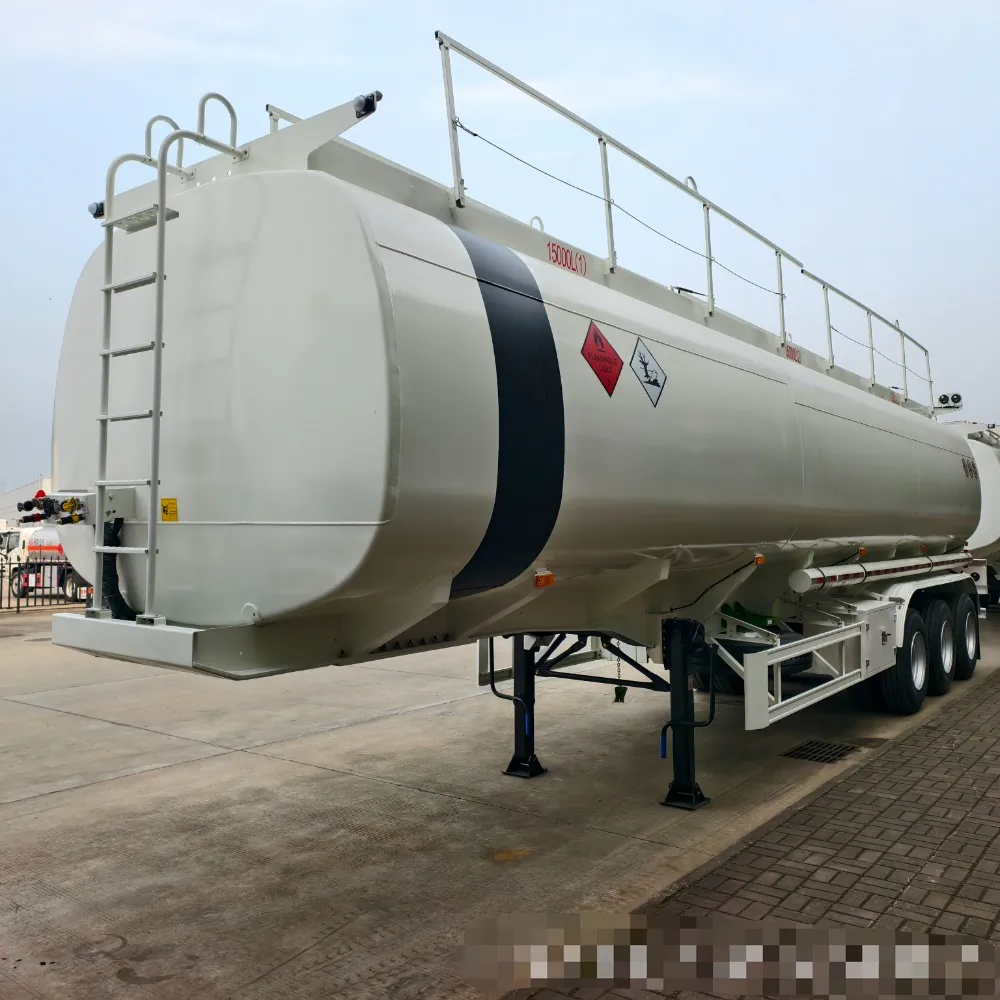

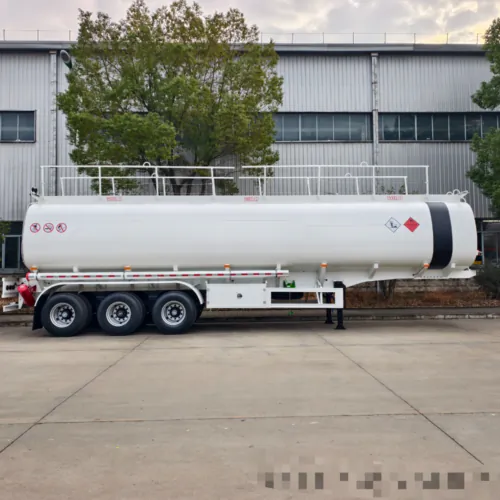

This is an unpowered oil tanker semi-trailer designed to be towed by a tractor unit. It features a high-capacity pressure vessel equipped with internal surge baffles and a multi-compartment configuration. Safety components—such as emergency shut-off valves, static grounding systems, and safety relief valves—are installed to ensure safe long-distance transport of hazardous petroleum products like gasoline and diesel.

Запросить расценки

Укажите необходимое количество и добавьте товар в список запросов на расчет стоимости.

Количество:

Описание

I. Tank Body

1. Volume: 35000L, can be configured with 3-6 compartments for different oil products (diesel, gasoline, kerosene). The number of compartments can be adjusted as needed.

2. Tank Material: Q235B high-quality carbon steel, cylinder thickness 6mm (>5.2mm), end cap thickness 6mm, elliptical tank, internal and external anti-corrosion treatment, white paint; aluminum alloy tank body optional for weight reduction.

3. Manholes: 3-6 explosion-proof manholes with breather valves on the top, with safety railings and walkways for convenient filling operations.

4. Unloading System: Bottom-mounted emergency shut-off valve, manual + pneumatic dual control; equipped with European standard unloading port, oil and gas recovery interface, and overflow prevention probe socket.

5. Safety Markings: The tank body is affixed with a diamond-shaped hazardous materials label and a no-smoking warning sign; the volume of each compartment is clearly printed.

II. Axle System

1. Axles: Three-axle Fuhua 13-ton special-purpose axles, high load-bearing capacity, suitable for long-distance heavy-duty transportation.

2. Suspension: American-style mechanical leaf spring suspension, 10 thickened leaf springs, resistant to bumps; air suspension optional.

3. Tires: 12R22.5 tubeless steel wire tires, equipped with aluminum alloy steel rims, one spare tire.

4. Outriggers: JOST 28-ton double-action external outriggers, stable and reliable parking support.

5. Towing Pins: 50# (90# optional) towing pins, compatible with mainstream tractor units.

III. Chassis and Braking Electrical System

1. Chassis Beams: High-strength I-beams, shot-blasted for rust removal, stable welding process, high strength and not easily deformed.

2. Braking System: Dual-circuit air brakes, WABCO valves, spring-loaded parking brake, ABS anti-lock braking system, meeting the safety requirements for dangerous goods transportation.

3. Electrical System: 24V circuit, LED side marker lights and taillights, complete reflective markings, compliant with domestic export regulations.

4. Toolbox: Enclosed toolboxes on both sides for storing tools and accessories.

IV. Accompanying Accessories & Documents

1. Included: Fire extinguisher, fire cap, mudguards, and a set of operating tools.

2. Documents: Vehicle certificate of conformity, tank inspection report, meeting domestic registration and export customs clearance requirements.

Преимущества продукта

3.1. Compartmentalized design, capable of transporting different media such as diesel and gasoline simultaneously, offering flexible transportation.

4.2. Emergency shut-off valve at the bottom, quickly cutting off the medium in case of an accident, ensuring high safety.

5.3. Fuhua axles + Jost outriggers, with strong market parts compatibility and convenient maintenance.

6.4. Chusheng original factory process, tank weld flaw detection, thorough anti-corrosion process, and long service life.
